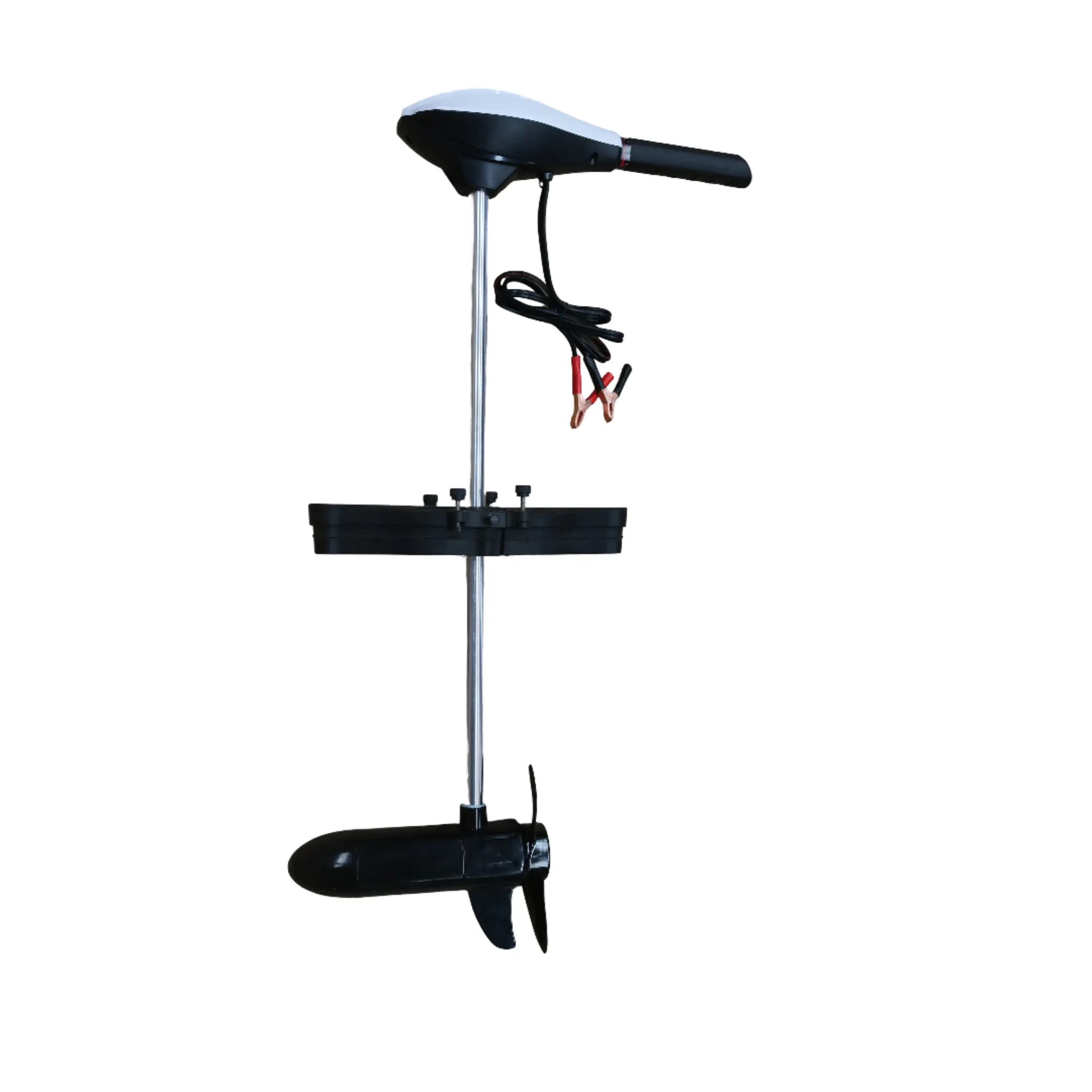

Enhance Your Kayaking Experience with the Haibo ET34 Series Hand Control Electric Trolling Motor

Bay Sports has partnered with Haibo to customize the Haibo ET34 Series Hand Control Electric Trolling Motor, specifically designed for seamless integration with Bay Sports' Flap Drive Pedal Kayaks.

Key Features of the Haibo ET34 Series Electric Trolling Motor

Powerful Thrust: Delivers 34 lbs of thrust, ensuring efficient propulsion.

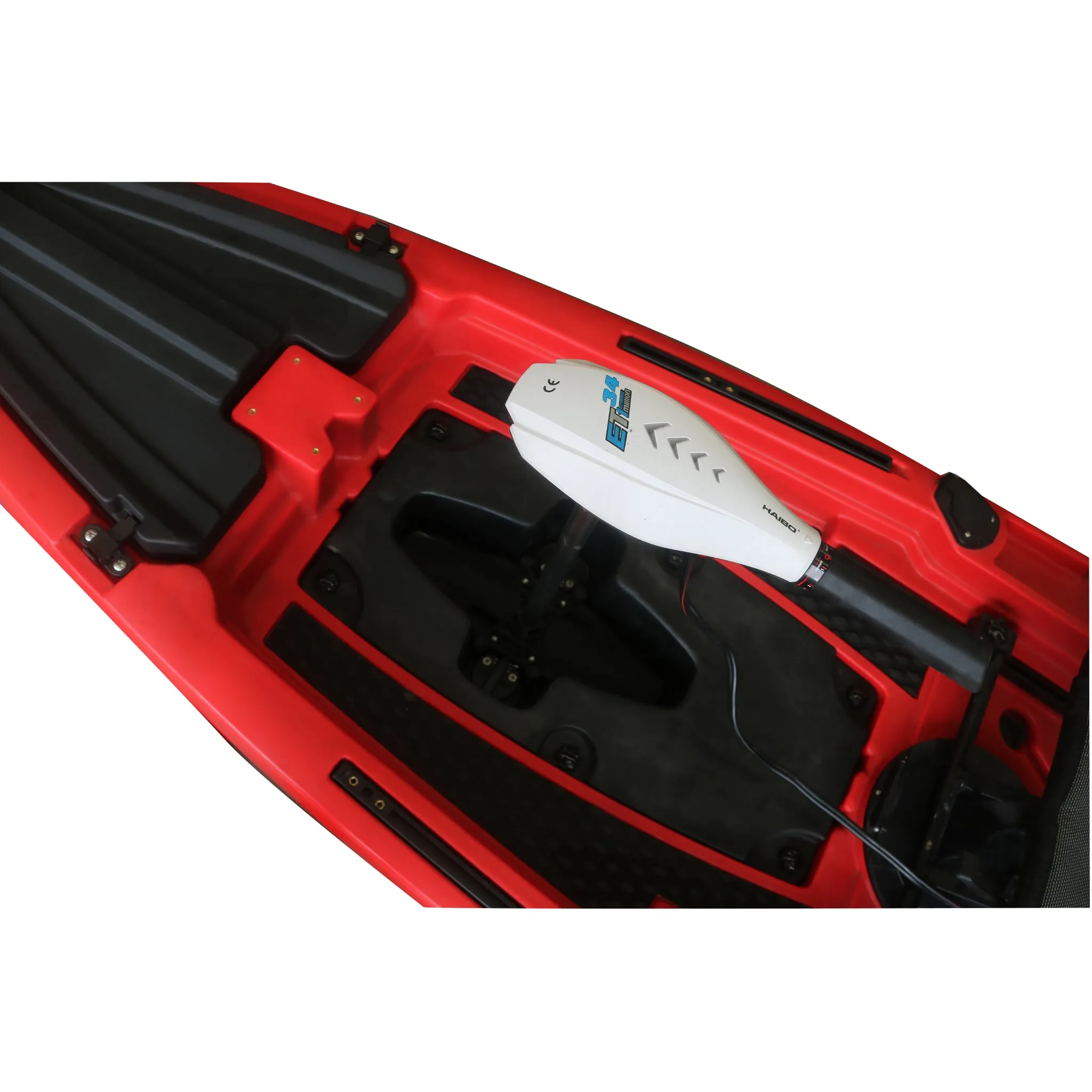

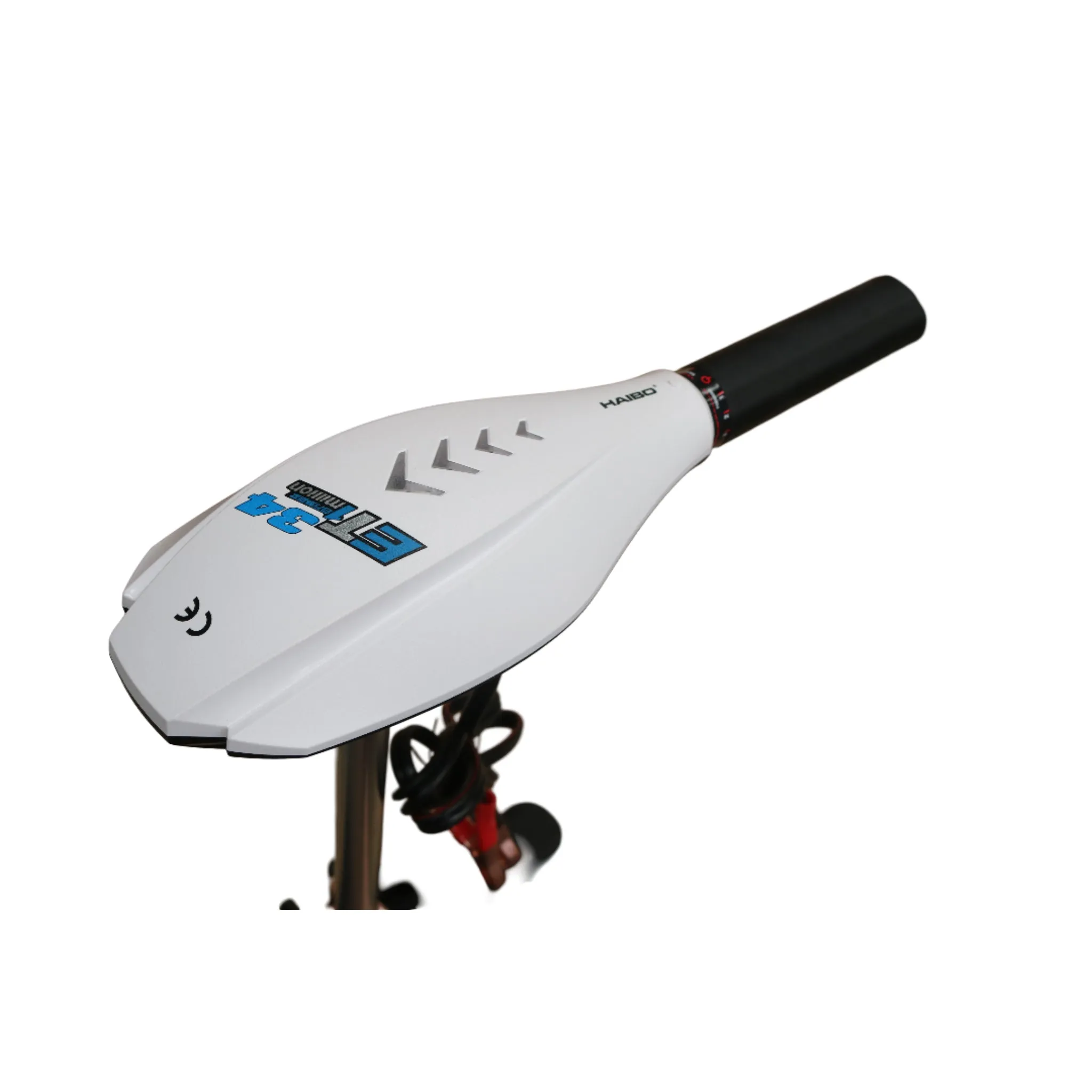

User-Friendly Control: Equipped with a telescopic tiller positioned directly in front of the stadium seat for easy hand control.

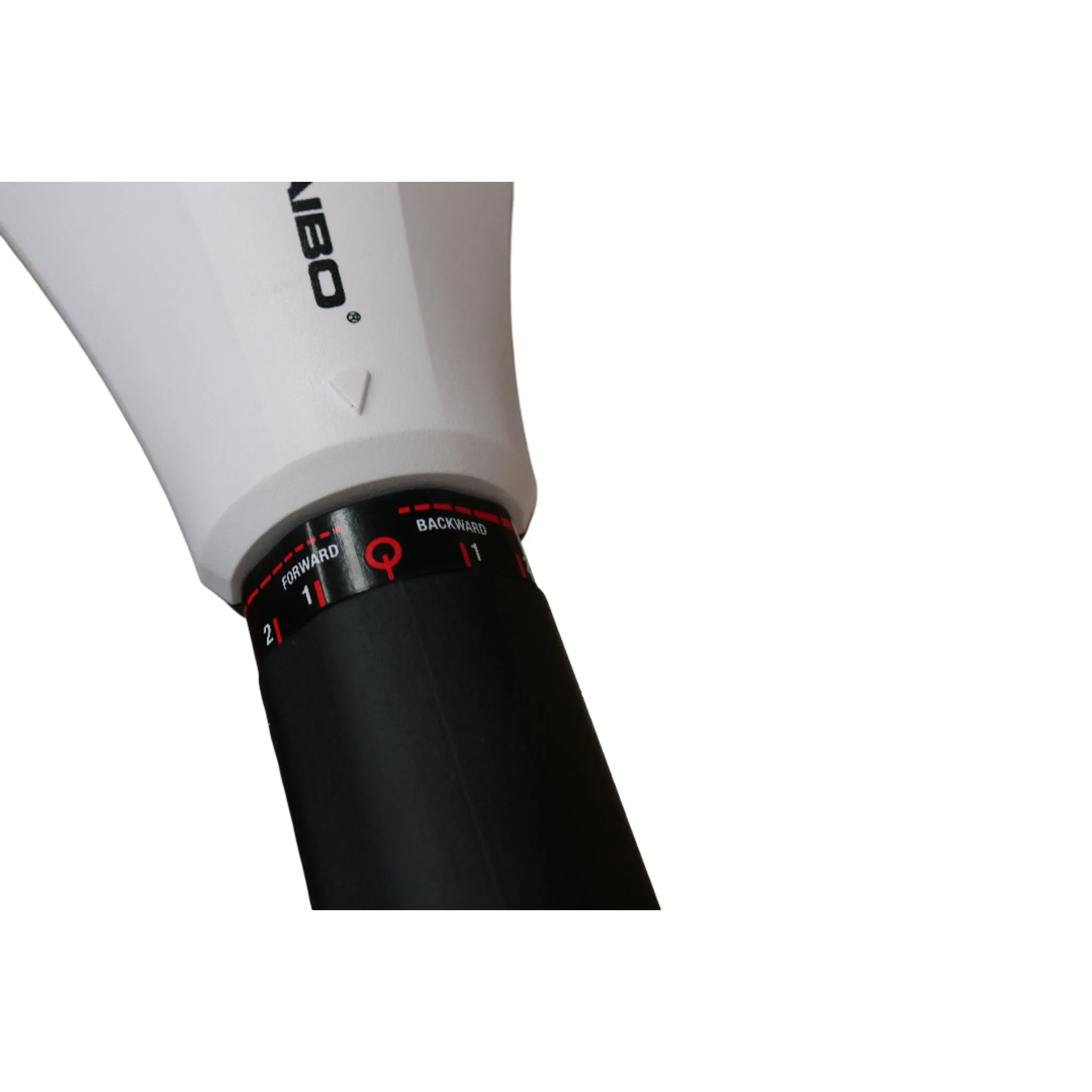

Versatile Speed Options: Offers five forward speeds and three reverse speeds, allowing precise control for trolling and maneuvering.
Freshwater and Saltwater Use: Suitable for both environments; ensure thorough rinsing after saltwater use to maintain optimal performance.

Upgrade your kayaking adventures with the Haibo ET34 Series Hand Control Electric Trolling Motor, tailored for Bay Sports' Flap Drive Pedal Kayaks.

Battery Recommendations and Performance

Optimal Battery Choice: A 12V battery with 100AH capacity (not included) is recommended for all-day power.
Alternative Option: A 50AH battery can provide 2 to 4 hours of operation, depending on speed and usage.
Continuous Usage Duration: Expect 1½ to 2 hours of movement at maximum speed, and over 3 hours at lower speeds, subject to conditions and battery type.

Compatibility with Bay Sports Pedal Pro Kayaks

This motor is compatible with the following Bay Sports Pedal Pro Kayaks equipped with the Flap Drive system:

Pedal Pro Fish 2.5m
Pedal Pro Fish 2.9m
Pedal Pro Fish 3.4m
Pedal Pro Fish 3.6m
Pedal Pro Fish 3.9m
Pedal Pro Fish 4.1m Tandem
Pedal Pro Fish 2.9m Modular
Pedal Pro Fish 4.2m Modular

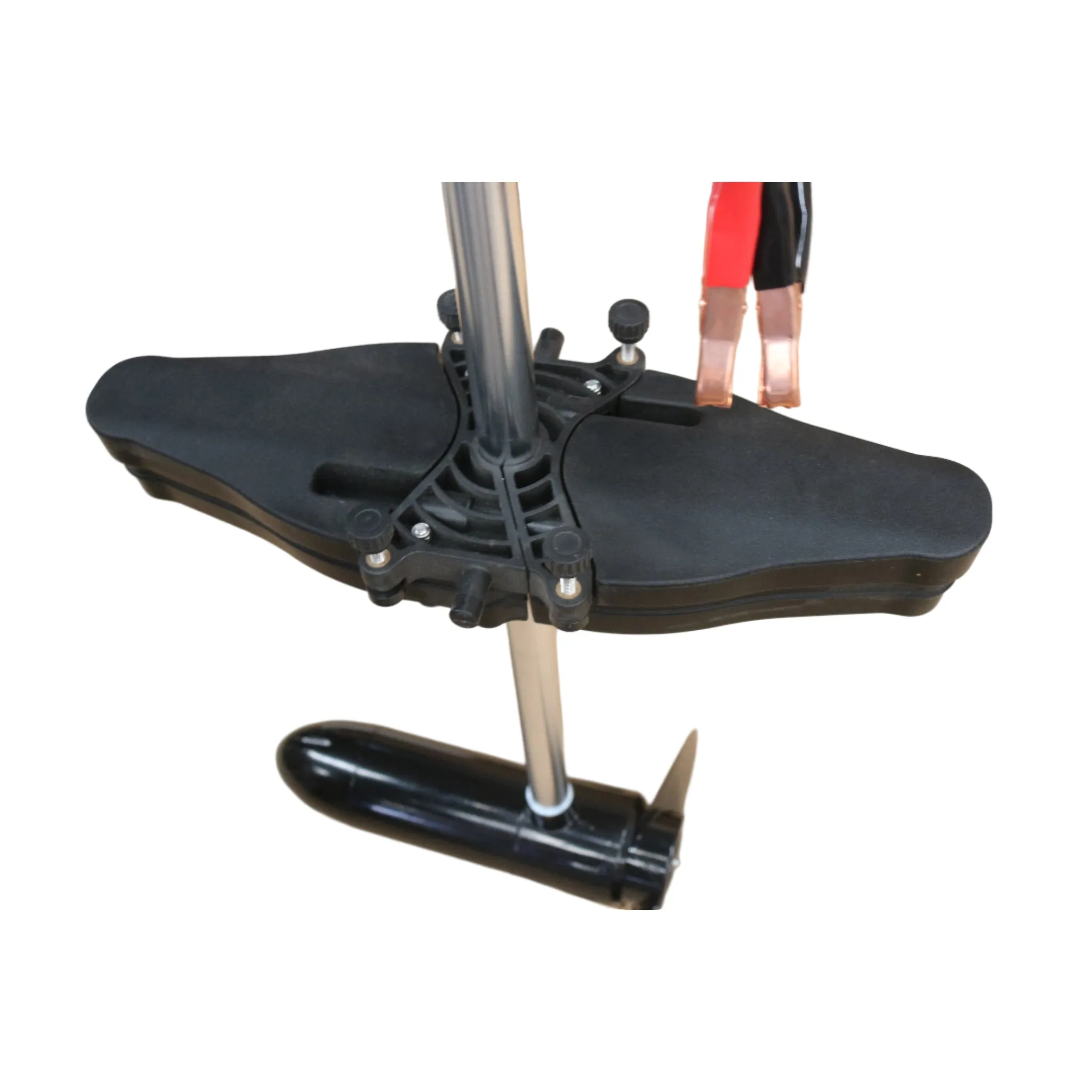

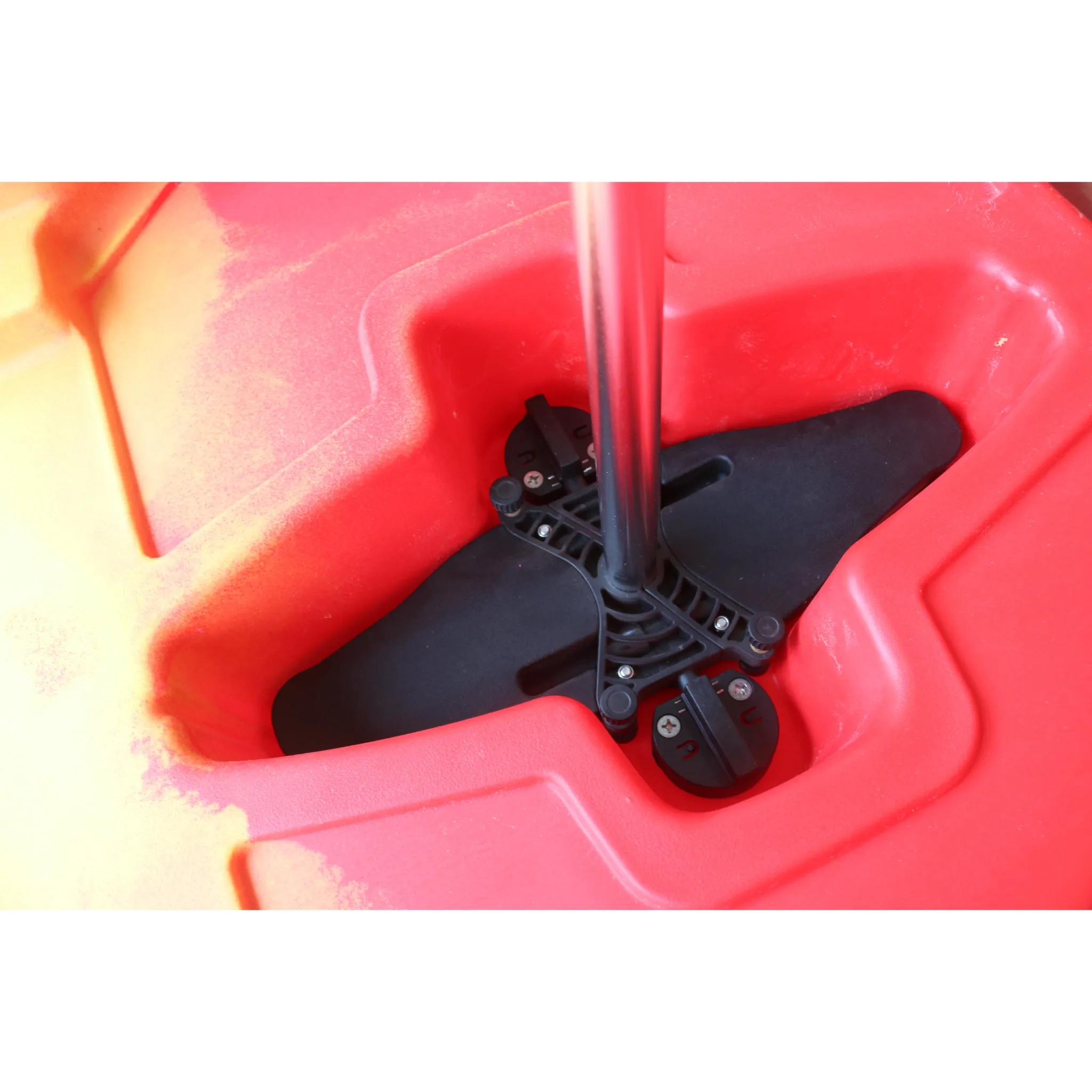

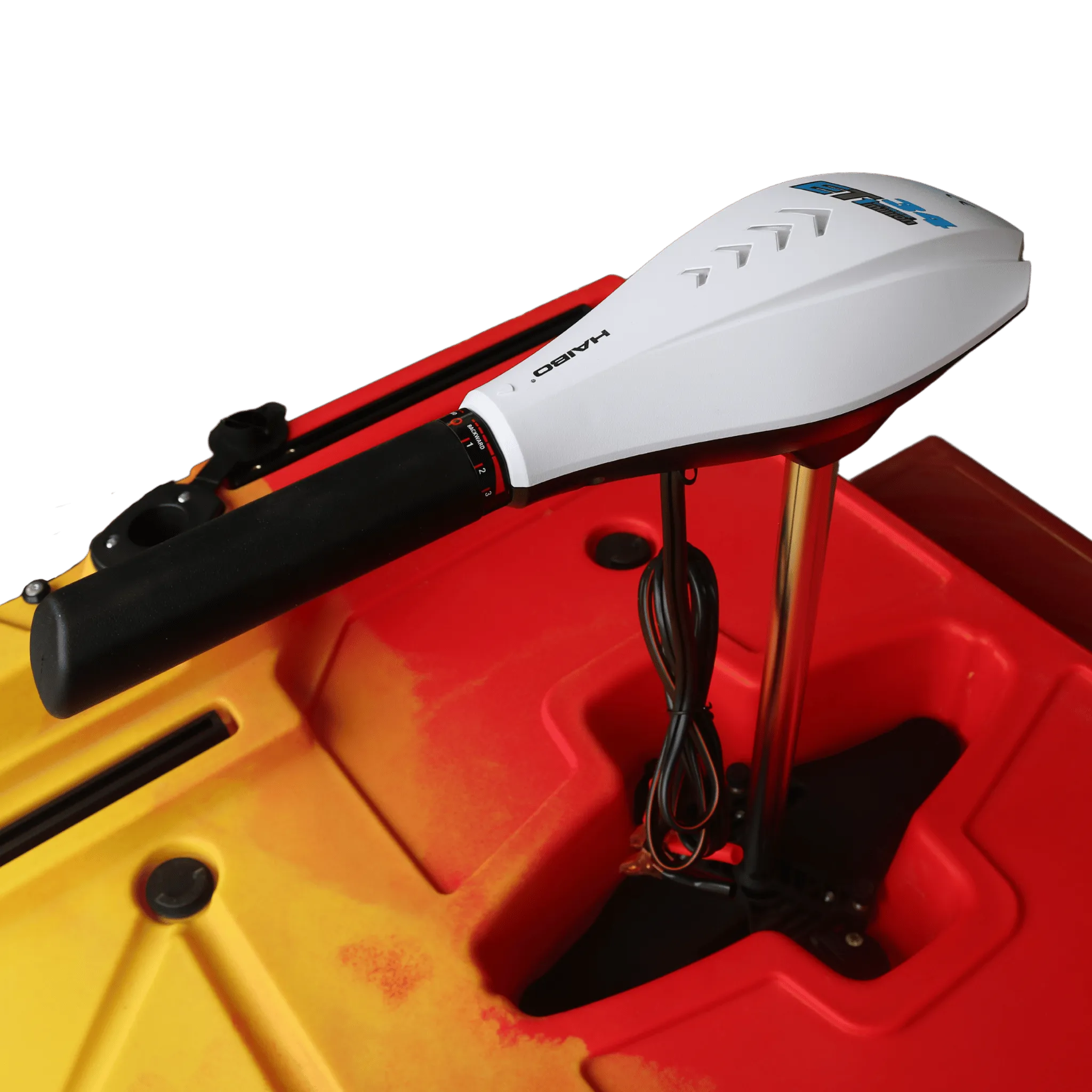

It easily slots into the existing Flap Drive system location, providing a seamless upgrade to your kayaking experience.

Key features

34 lbs of thrust power
Telescopic handle
Multi-speed mode
Quiet and stable
High efficiency and long life motor
Portable and easy to use
LED dynamic voltage display, overvoltage and under-voltage alert
Hassle Free installation

Specifications

Model	ET34
Power (W)	408
Thrust (lbs)	34
Thrust (kg)	15.4
Rated Voltage (V)	12
Max. Current (A)	34
Type of Electric Motor	Brush
Propeller Max. Speed at Full Power (rpm)	1800
Management	Handle
Type of Handle	Telescopic
Shifting	5 Forwards and 3 Backwards
GPS	No

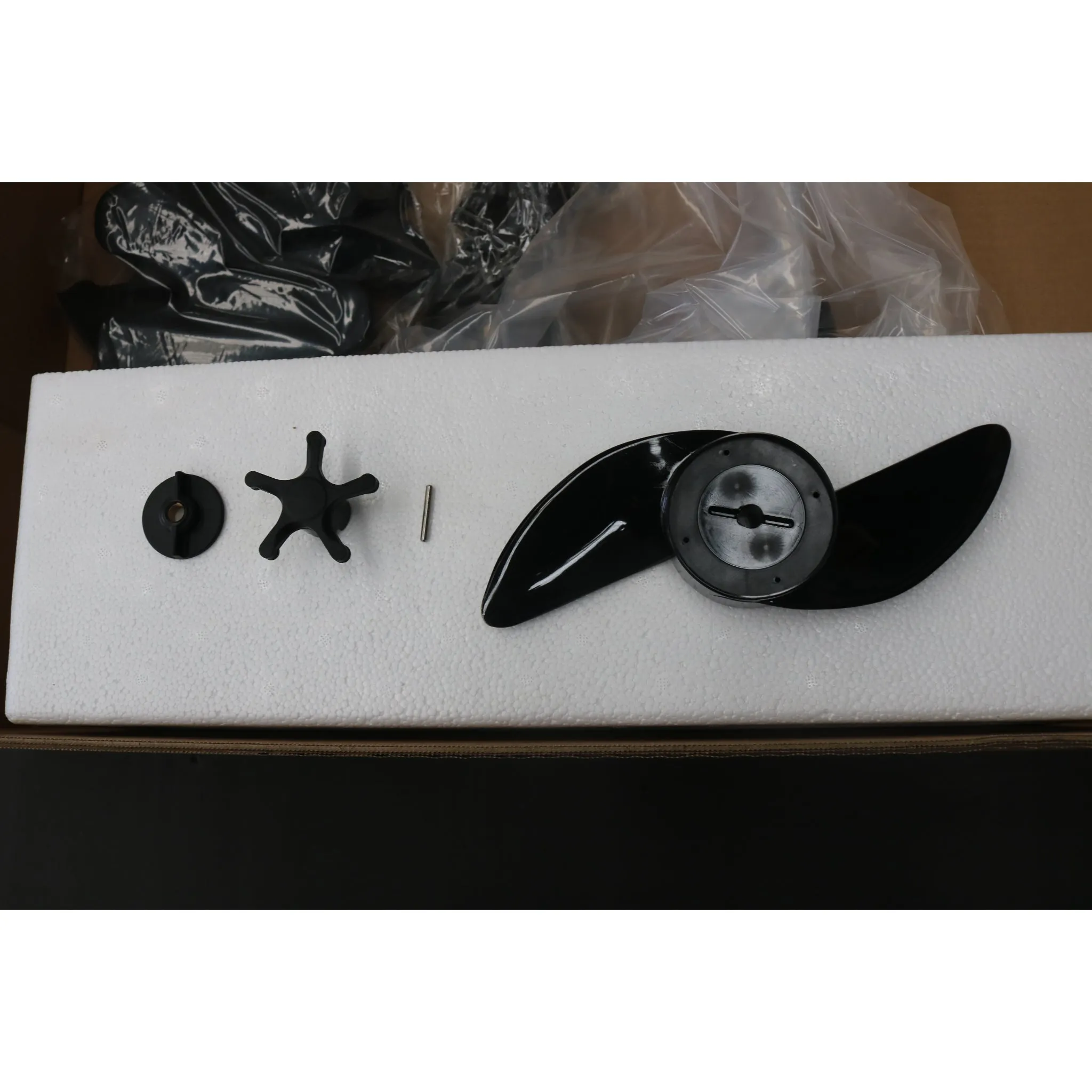

Number of Propeller Blades	2
Noise Level (dB)	52
Max. Boat Weight (kg)	300
Max. Length of Boat (m)	4.8
Use Environment	Fresh Water
Colour	White
Total Engine Height (cm)	101
Shaft Length (cm)	78.7
Weight (kg)	G.W: 9kg N.W: 6kg
Recommended Battery Capacity (AH)	100

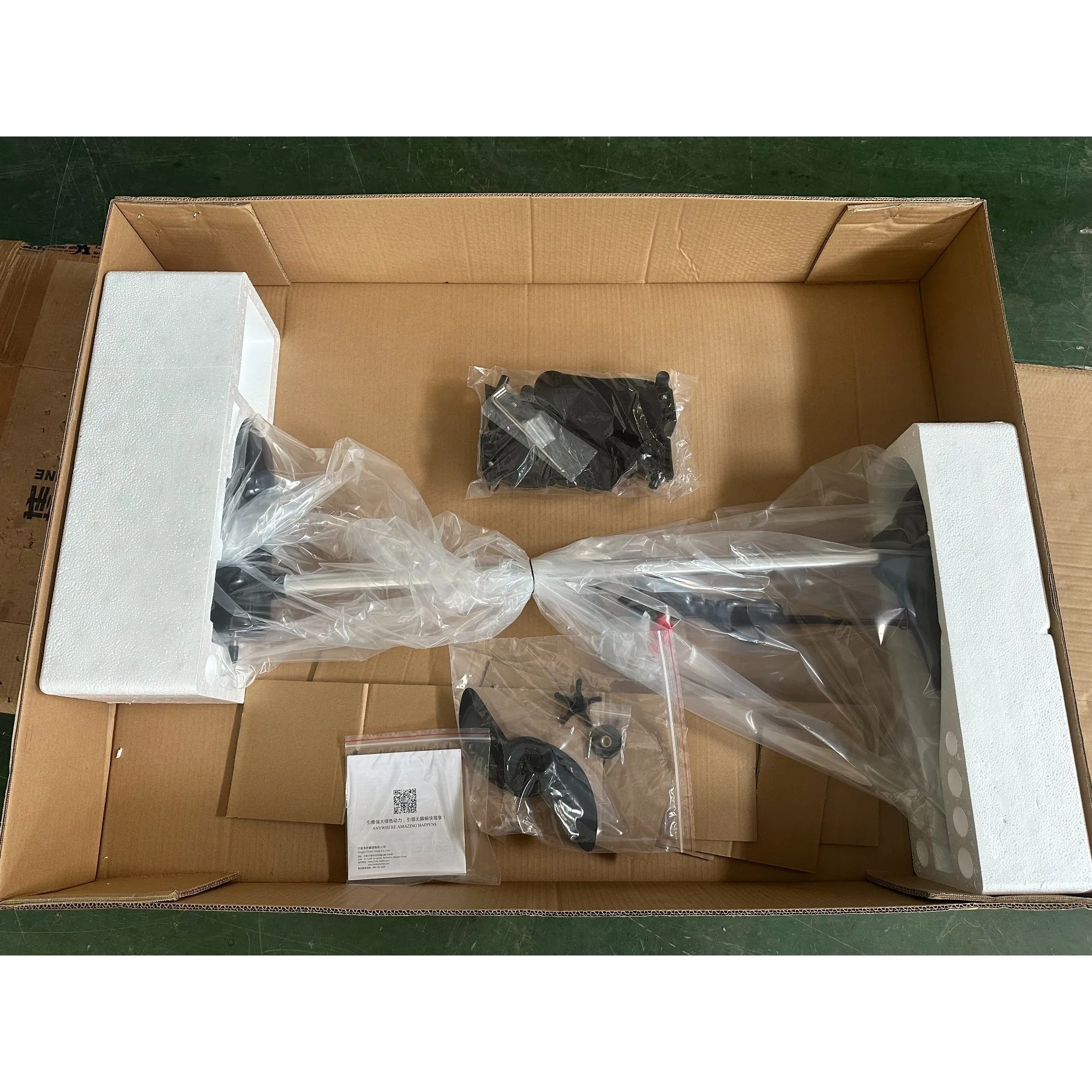

Package Size (cm)	112.5 x 18 x 85cm
Warranty Period (Months)	12

User Manual

Warranty

The Haibo ET34 Series Hand Control Electric Trolling Motor comes with a 1 year Limited Warranty. Please follow all usage conditions, storage and maintenance. Failure to do so will void the warranty.
